Feb 18^th, 2006 at 1:32pm

alrot Offline
Colonel
Freeware Designers Above
All..

Posts: 10231

No,not the song Grin

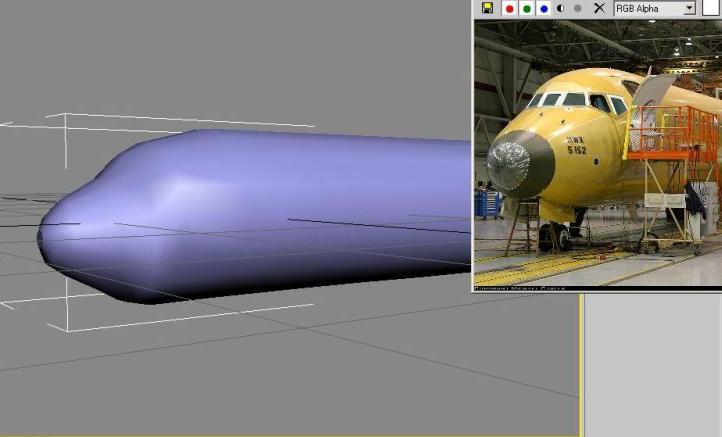

,Ill realy apresiate a little hand here I never could do esperical shapes In Gmax (3ds)Please don't post a Little *.gift showing a little hand Grin

Seriously I forgot after 4 or five years I can't even remerber if I knew how to do it... Wink

Venezuela

Back to top

IP Logged

Reply #1 - Feb 18^th, 2006 at 3:56pm

Smoke2much Offline
Colonel
The Unrepentant Heretic
Sittingbourne, Kent,

Posts: 3879

I would select the correct vertices of the cylinder and do a "Select and non uniform scale" of the Z or X using the cross section as a guide.

But it might be better to wait for a reply from somebody with a little more experience of this.

Will

Who switched the lights off? I can't see a thing....... Hold on, my eyes were closed. Oops, my bad...............&&

Back to top

IP Logged

Reply #2 - Feb 18^th, 2006 at 5:24pm

SkyNoz Offline
Colonel
Project Kfir!

Gender:
Posts: 1720

Take a looks at this link, http://www.simviation.com/gryphon/tutorials/gMax_00.htm....not that your a Stupid Idoit, but theirs specific info explained on what you are trying to do ,

Info : "Sub-Object Modification " - "Modifiers and Such " http://www.simviation.com/gryphon/tutorials/gMax_04.htm Wink

Project Kfir!&&&&My Gmax page&&Aircraft modeler/Aircarft painter&&&&Aye the key!&&[GeneralEngineData]&&//0=Piston, 1=Jet, 2=None, 3=Helo-Turbine, 4=Rocket, 5=Turboprop

Back to top

IP Logged

Reply #3 - Feb 19^th, 2006 at 8:34am

alrot Offline
Colonel
Freeware Designers Above
All..

Posts: 10231

Oh Boy! this is though,each point has to be set one by one,

There's gotta be another easier way Angry

Venezuela

Back to top

IP Logged

Reply #4 - Feb 19^th, 2006 at 10:45am

Brett_Henderson Offline
Colonel
EVERY OUTER MARKER SHOULD
BE AN NDB

Gender:
Posts: 3593

Try uniform and non-uniform scaling with one or two axes limited.. And soft-select comes in real handy here. Experiment with that, adjusting the fall-off.

If you move one point at a time.. you're gonna end up with a bumby/lumpy surface.

Back to top

IP Logged

Reply #5 - Feb 19^th, 2006 at 12:31pm

SkyNoz Offline
Colonel
Project Kfir!

Gender:
Posts: 1720

Check this link, this explains the Loft method which is extremely usefull for useing cross-selections of fuselage formers etc. This method is very accurate in designing nose sections, fuselages and alot of surfaces that may consist of a constant curve. Wink

http://www.fsalpha.com/gmaxFSvideo/produced/flash_videos/nose_cone.shtml

Project Kfir!&&&&My Gmax page&&Aircraft modeler/Aircarft painter&&&&Aye the key!&&[GeneralEngineData]&&//0=Piston, 1=Jet, 2=None, 3=Helo-Turbine, 4=Rocket, 5=Turboprop

Back to top

IP Logged

Reply #6 - Feb 19^th, 2006 at 1:11pm

alrot Offline
Colonel
Freeware Designers Above
All..

Posts: 10231

Quote:

Check this link, this explains the Loft method which is extremely usefull for useing cross-selections of fuselage formers etc. This method is very accurate in designing nose sections, fuselages and alot of surfaces that may consist of a constant curve. Wink

http://www.fsalpha.com/gmaxFSvideo/produced/flash_videos/nose_cone.shtml

Oh! man

I can record it,i don't have internet at home i wont be able to remember this very helpful video Cry

Venezuela

Back to top

IP Logged
