propellers and mixture? (Read 432 times)
Oct 22nd, 2004 at 2:30pm

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

Can you please tell me what is prop and mixter used for and when do I use it ???

Juanca

IP Logged

Reply #1 - Oct 22nd, 2004 at 3:16pm

Webb   Ex Member
I Like Flight Simulation!

*

Mixture is the ratio of fuel to air.  At higher altitudes (I usually don't mess with the mixture until about 20,000 feet) you need to add more air to compensate for the thinner air at altitude.  I add air until the performance starts to decline then back off a little.

Prop trim is like changing gears in a car.  After you get to cruising altitude you should trim the prop to get better fuel efficiency.  Watch the fuel flow gauge and trim until performance starts to decline, then back off a little.

IP Logged

Reply #2 - Oct 22nd, 2004 at 8:58pm

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

then why put mixture controls on a cessna 182 (for example) if its maximum altidude is much lower than 20,000ft ???

IP Logged

Reply #3 - Oct 22nd, 2004 at 9:09pm

Webb   Ex Member
I Like Flight Simulation!

*

I don't mess with mixture until 20,000 feet.  Proper procedure would be to start messing with it at about 5,000 feet.

IP Logged

Reply #4 - Oct 23rd, 2004 at 6:59am

ozzy72   Offline
Global Moderator
Pretty scary huh?
Madsville

Gender: male
Posts: 37122
*****

Juanca if you are playing with quite high realism settings then remember the following;
Fine pitch on the prop on take-off/landing, coarse pitch for cruisin' Wink This is for better performance without thrashing the engine to death.
The mixture has to be adjusted or you'll flood the engine with more fuel than air and it stalls, which is NOT good Grin Also by thinning the mixture you can get greater range Wink

Ozzy


...
There are two types of aeroplane, Spitfires and everything else that wishes it was a Spitfire!
IP Logged

Reply #5 - Oct 23rd, 2004 at 8:25am

Fozzer   Offline
Colonel
An elderly FS 2004 addict!
Hereford. England. EGBS.

Posts: 24861
*****

I start weakening my mixture once above 2000 ft ASL.
(My real flight instructor does the same thing).
Once the trim, throttle, prop control and mixture settings are correctly set, the aircraft will fly faster and more efficiently... 8)...!

Cheers...!

Paul.

Note: If your airfield is above 5000 ft ASL the mixture will need to be weakened for a quick, successful take-off... Shocked...!


Dell Dimension 5000 BTX Tower. Win7 Home Edition, 32 Bit. Intel Pentium 4, dual 2.8 GHz. 2.5GB RAM, nVidia GF 9500GT 1GB. SATA 500GB + 80GB. Philips 17" LCD Monitor. Micronet ADSL Modem only. Saitek Cyborg Evo Force. FS 2004 + FSX. Briggs and Stratton Petrol Lawn Mower...Motor Bikes. Gas Cooker... and lots of musical instruments!.... ...!
Yamaha MO6,MM6,DX7,DX11,DX21,DX100,MK100,EMT10,PSR400,PSS780,Roland GW-8L v2,TR505,Casio MT-205,Korg CX3v2 dual manual,+ Leslie 760,M-Audio Prokeys88,KeyRig,Cubase,Keyfax4,Guitars,Orchestral,Baroque,Renaissance,Medieval Instruments.
IP Logged

Reply #6 - Oct 23rd, 2004 at 3:38pm

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

Sad

I'm sorry but I still dont understand this prop and mixture  issue

If I lean the prop, the rpm descend!! and if I lean the mixture rpm go up!

also when I lean the mixture so that the fuel flow gauge needle marks the green, the engines killed! Shocked

????

Can you please explain me what is the misterious rtelation b/w the throttle and mixture and prop? ???

and how to use them a correctly and as realistic as can.


thanks again Wink

Juanca

IP Logged

Reply #7 - Oct 23rd, 2004 at 4:23pm

Fozzer   Offline
Colonel
An elderly FS 2004 addict!
Hereford. England. EGBS.

Posts: 24861
*****

Pick the default Cessna 182, and practice with the throttle prop and mixture controls.

Pushing the black throttle knob in speeds the engine up.
Pulling the blue prop knob out coarsens the prop pitch.
Pulling the red mixture knob out weakens the mixture, (fully out will stop the engine).

Cheers ....!

Paul.

P.S. ..practice the "Flying Lessons" with the instructor in the simulator... 8)...!


Dell Dimension 5000 BTX Tower. Win7 Home Edition, 32 Bit. Intel Pentium 4, dual 2.8 GHz. 2.5GB RAM, nVidia GF 9500GT 1GB. SATA 500GB + 80GB. Philips 17" LCD Monitor. Micronet ADSL Modem only. Saitek Cyborg Evo Force. FS 2004 + FSX. Briggs and Stratton Petrol Lawn Mower...Motor Bikes. Gas Cooker... and lots of musical instruments!.... ...!
Yamaha MO6,MM6,DX7,DX11,DX21,DX100,MK100,EMT10,PSR400,PSS780,Roland GW-8L v2,TR505,Casio MT-205,Korg CX3v2 dual manual,+ Leslie 760,M-Audio Prokeys88,KeyRig,Cubase,Keyfax4,Guitars,Orchestral,Baroque,Renaissance,Medieval Instruments.
IP Logged

Reply #8 - Oct 24th, 2004 at 12:22am

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

Yes I know that! thank you for all that good information,

BUT!, What I want to know is, like I've said before, Is what is the relation b/w throttle, prop and mixture.

And most importantly, what is the proper procedure, or even better;  what configuration should I target (relationshp) with these three levers, during the three stages of flight?

Thanks

Juanca

IP Logged

Reply #9 - Oct 24th, 2004 at 4:28am

Fozzer   Offline
Colonel
An elderly FS 2004 addict!
Hereford. England. EGBS.

Posts: 24861
*****

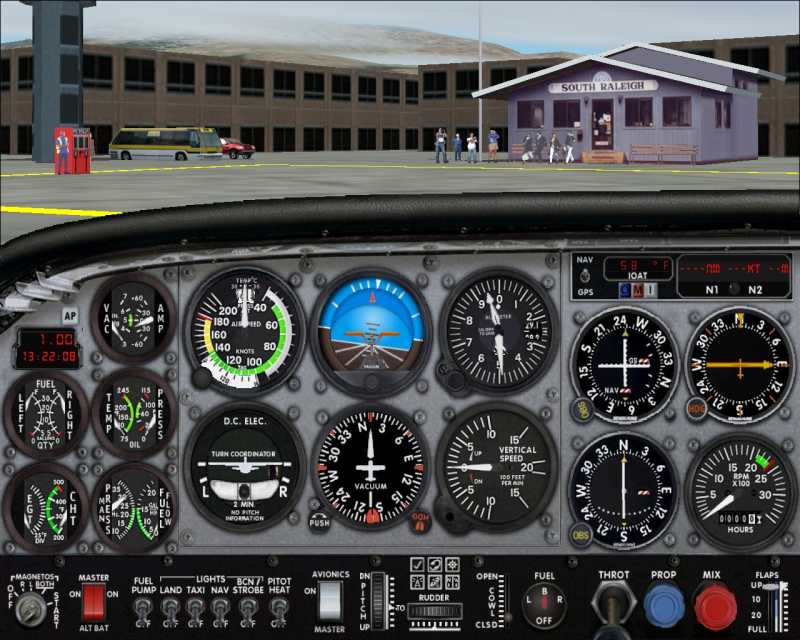

Pick the deafault Cessna 182 Skylane, (the fixed wheel version!), as shown here...>>>

...

Locate these gauges and remember them:

a)   Fuel flow gauge.
a)   Manifold pressure gauge.

b)  Cylinder head temperature gauge.
b)  Exhaust gas temperature gauge.

c)  Tachometer gauge.

d)  Airspeed gauge.

To take off, Push the three knobs fully in for max power, (Throttle max, Prop fine, Mixture full rich).

When in the cruise, adjust the throttle and prop knobs to balance both the needles in gauges (a) so that they are in the green, (both horizontal).

c)  Keep the tacho needle in the green.

d)  Note the airspeed. You should now be getting the max speed and using the minimium of fuel.

b)  Keep an eye on the cylinder head temperature and exhaust gas temperature....keep them as cool as possible.

(The mixture control becomes more effective when above 2000/5000 ft ASL....slightly weaken by carefully pulling the knob out until the engine starts to run rough, then push it in slightly until the engine runs smooth.
The air/fuel mixture will now be at its most efficient).

When all is running fine, now trim the aircraft for straight and level flight using the trim wheel.

To land, push the prop and mixture knobs fully in. Adjust the throttle to reduce the airspeed. Re-trim for the flare and landing.

Hope this helps... Grin...!

Don't forget to take the lessons with the instructor in the Cessna 172 in the Flight sim. Most of your problems will be cured there... Wink...!

The only difference between the 172 and the 182 is the added complication of the propellor control, (the blue knob)... 8).
Once you have mastered this, the rest is easy... Grin...!

Cheers...

Paul.



Dell Dimension 5000 BTX Tower. Win7 Home Edition, 32 Bit. Intel Pentium 4, dual 2.8 GHz. 2.5GB RAM, nVidia GF 9500GT 1GB. SATA 500GB + 80GB. Philips 17" LCD Monitor. Micronet ADSL Modem only. Saitek Cyborg Evo Force. FS 2004 + FSX. Briggs and Stratton Petrol Lawn Mower...Motor Bikes. Gas Cooker... and lots of musical instruments!.... ...!
Yamaha MO6,MM6,DX7,DX11,DX21,DX100,MK100,EMT10,PSR400,PSS780,Roland GW-8L v2,TR505,Casio MT-205,Korg CX3v2 dual manual,+ Leslie 760,M-Audio Prokeys88,KeyRig,Cubase,Keyfax4,Guitars,Orchestral,Baroque,Renaissance,Medieval Instruments.
IP Logged

Reply #10 - Oct 24th, 2004 at 2:57pm

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

right on fozzer!
Just the information I needed
Thank you very much

Now.... here comes the obligated question Cheesy

How do you get to see people and buses and cars and all, in that gr8t picture?????


IP Logged

Reply #11 - Oct 24th, 2004 at 5:15pm

Fozzer   Offline
Colonel
An elderly FS 2004 addict!
Hereford. England. EGBS.

Posts: 24861
*****

Quote:
right on fozzer!

Now.... here comes the obligated question Cheesy

How do you get to see people and buses and cars and all, in that gr8t picture?????



Hi Juan...!
When you have fully mastered the controls on the Cessna 182 Skylane, can fly it to the satisfaction of your Instructor, and have obtained your Private Pilot Licence, come back again and I will let you into that little secret.... Wink... Wink... Wink... Grin...!
Tee-Hee...
LOL...!

Cheers... Grin...!

Paul.


Dell Dimension 5000 BTX Tower. Win7 Home Edition, 32 Bit. Intel Pentium 4, dual 2.8 GHz. 2.5GB RAM, nVidia GF 9500GT 1GB. SATA 500GB + 80GB. Philips 17" LCD Monitor. Micronet ADSL Modem only. Saitek Cyborg Evo Force. FS 2004 + FSX. Briggs and Stratton Petrol Lawn Mower...Motor Bikes. Gas Cooker... and lots of musical instruments!.... ...!
Yamaha MO6,MM6,DX7,DX11,DX21,DX100,MK100,EMT10,PSR400,PSS780,Roland GW-8L v2,TR505,Casio MT-205,Korg CX3v2 dual manual,+ Leslie 760,M-Audio Prokeys88,KeyRig,Cubase,Keyfax4,Guitars,Orchestral,Baroque,Renaissance,Medieval Instruments.
IP Logged

Reply #12 - Oct 24th, 2004 at 9:16pm

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

Tongue
Kiss
Smiley Wink Cheesy Grin
8)

IP Logged

Reply #13 - Oct 25th, 2004 at 2:38pm

juanca   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 69
*****

but I am ready!  I really am!  plz show me how plz Cry
