Simviation Forum - Space used on a new drive?

Aug 10^th, 2005 at 5:14pm

Wing Nut Offline
Colonel
Hoy-Hoy!

Gender:
Posts: 14173

Well, I installed a new 120 Gig drive today, to replace the 30 gig drive I scavenged when my old 60 Gig drive died out. Installation went ok, but it shows 6 gigs used on it! I understand the need for some space to bew used for Windows and all, but 6 gigs? Isn't that a bit much? I mean it says it's only using megs, so the 6 gigs are totally unaccounted for...

HP p7-1300w
AMD Athlon II X4 650 Quad-core 3.2 Ghz
23" HP Widescreen monitor/19" Dell monitor
Windows 7 Home Premium
16 Gb DDR3 PC10600 Ram
1 Gb GeForce GTX 550Ti video card
1 TB RAID Drives

If you want to see the most beautiful girl in the world, CLICK HERE!

Back to top

IP Logged

Reply #1 - Aug 10^th, 2005 at 6:31pm

the_autopilot Offline
Colonel

Gender:
Posts: 1359

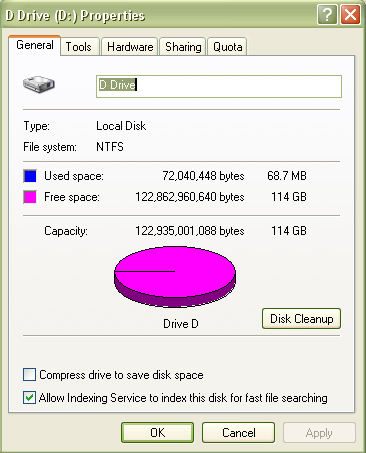

I doubt a windows install of XP takes only 68.7 megs. Something is wrong.

Perhaps it was partitioned incorrectly. Using a partition manager or the XP install cd (boot with it) to check your hard drive and see if their is unpartitioned space.

BTW, is this a SATA or IDE drive?

Link to sig:&&Click here&&(Cannot post signature here due to current forum restrications on linked images).

Back to top

IP Logged

Reply #2 - Aug 10^th, 2005 at 7:03pm

Wing Nut Offline
Colonel
Hoy-Hoy!

Gender:
Posts: 14173

It's IDE. This is not the Windows drive. I have another 120 Gig drive also, this is my second one giving me a total of 240.

HP p7-1300w
AMD Athlon II X4 650 Quad-core 3.2 Ghz
23" HP Widescreen monitor/19" Dell monitor
Windows 7 Home Premium
16 Gb DDR3 PC10600 Ram
1 Gb GeForce GTX 550Ti video card
1 TB RAID Drives

If you want to see the most beautiful girl in the world, CLICK HERE!

Back to top

IP Logged

Reply #3 - Aug 10^th, 2005 at 8:20pm

Scorpiоn Offline
Colonel
Take it easy!
The Alamo

Gender:
Posts: 4496

That's correct Kevin. The more gigs you have, the more that's snatched away from you. I have 500GB, but only 465 are usable. Roll Eyes

The Devil's Advocate.&&

Back to top

IP Logged

Reply #4 - Aug 10^th, 2005 at 9:05pm

Wing Nut Offline
Colonel
Hoy-Hoy!

Gender:
Posts: 14173

Lovely...

Any suggestions as to how I can get the info from the old drive to the new one?

HP p7-1300w
AMD Athlon II X4 650 Quad-core 3.2 Ghz
23" HP Widescreen monitor/19" Dell monitor
Windows 7 Home Premium
16 Gb DDR3 PC10600 Ram
1 Gb GeForce GTX 550Ti video card
1 TB RAID Drives

If you want to see the most beautiful girl in the world, CLICK HERE!

Back to top

IP Logged

Reply #5 - Aug 10^th, 2005 at 9:37pm

Scorpiоn Offline
Colonel
Take it easy!
The Alamo

Gender:
Posts: 4496

What I did was I just hooked up the old drive as a slave, and copied what I needed over. Failing that (some folders were protected, so I could only access them from the old drive's XP lon-on), I burned them on to a CD/DVD.

The Devil's Advocate.&&

Back to top

IP Logged

Reply #6 - Aug 10^th, 2005 at 9:53pm

Wing Nut Offline
Colonel
Hoy-Hoy!

Gender:
Posts: 14173

Unfortunately, I have used both of my Slave/Master positions, so I have no way of just copying it... Tongue

HP p7-1300w
AMD Athlon II X4 650 Quad-core 3.2 Ghz
23" HP Widescreen monitor/19" Dell monitor
Windows 7 Home Premium
16 Gb DDR3 PC10600 Ram
1 Gb GeForce GTX 550Ti video card
1 TB RAID Drives

If you want to see the most beautiful girl in the world, CLICK HERE!

Back to top

IP Logged

Reply #7 - Aug 10^th, 2005 at 10:14pm

Scorpiоn Offline
Colonel
Take it easy!
The Alamo

Gender:
Posts: 4496

You do have a disk drive, right? Perhaps you could swap out the disk drive temporarily.

What you might be able to pull off, is installing an OS on your old drive without reformatting, and using that as the master, and your new drive as the slave. Just an idea. Wink

That shoudl work, methinks.

The Devil's Advocate.&&

Back to top

IP Logged

Reply #8 - Aug 11^th, 2005 at 12:26pm

Weather_Man Offline
Colonel
TX

Gender:
Posts: 184

The reason for the discrepancy in drive capacity is how the space is reported. The HDD manufacturers report capacity in decimal (base 10) format. The OS reports capacity based in binary (base 2) format, converted to decimal. 1000 vs. 1024, if you will.

Quote:

"Operating System developers (Windows; Macintosh and perhaps others) use
Binary Math. We’ve seen that gross variation between binary and decimal
GigaByte reported capacities is due to the utilization of base 2 arithmetic
converted to a base 10 representation. We’ve been able to determine that decimal
123.5GB is directly equivalent to binary 115GB, using a mathematical
transformation."

This paper explains it rather well:
http://www.wiebetech.com/pressreleases/BillionEqualBillion.pdf

&&

Back to top

IP Logged

Reply #9 - Aug 11^th, 2005 at 12:39pm

Weather_Man Offline
Colonel
TX

Gender:
Posts: 184

-- What skorpion said. Wink

If you are using 2 HDDs and 2 CD drives (all four IDE channels), unhook one of the CD drives and plug in the extra HDD. Then you can copy the contents over to the new HDD. Plug the CD drive back in when finished.

&&

Back to top

IP Logged

Reply #10 - Aug 13^th, 2005 at 7:08pm

GunnerMan Offline
Colonel
Not the trees!
In The Cockpit

Gender:
Posts: 1488

Also HDD are never perfect, no plater is the same so they can get close but not often do they get it right on, especially with lower end HDDs. My RAM for instance only has 1023 megs.

Back to top

IP Logged
