Real Pilots (Read 396 times)
Aug 6th, 2004 at 9:58am

squilky   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 15
*****

What Im wondering is how much do real pilots rely on auto pilot? In Flight Simulator 2004 you can pretty much fly the plane by simply turning a few nobs. Especially true in the jet aircraft where you enable the auto throttle and control air speed. And landings when activating the approach to an ILS runway couldn't be easier. The plane gets itseld down. Do real pilots fly this way or do they do most of the stuff manually? I feel like I'm cheating by using the auto pilot.

IP Logged

Reply #1 - Aug 6th, 2004 at 10:50am

Nexus   Offline
Colonel
The greater of two evils...

Gender: male
Posts: 3282
*****

Good subject.
Regardless what other people say.
Pilots ALWAYS flies the airplane, but that does not necessarily mean handflying.
Setting up the autopilot right is an art. Don't be fooled by the "dumbed down" autopilot in FS, in real world it is a bit harder. Why do you think they need all that training? An aircaft can be flown in many different ways, the hard thing is to figure out which mode is best suitable at the moment. Some arrivals are better off flying in Heading select rather than lnav.

When to engage the autopilot is at the pilot's discretion. Takeoffs are never automated, they have to be flown manually, but all other phases of the flight can be managed by the autopilot.

When climbing thru 10.000ft, I'd say 99.9% of all airliners are flown in LNAV and VNAV (or corresponding autoflight modes) in conjunction with autothrottle.
This ensures that the flight is flown in an economical manner (all the speeds and climb profiles are calculated by the FMC unless you manually put in some restrictions)
Nowadays pilots are more of a system monitor, their destiny is linked through the FMC, the very heart of the aircraft. The purpose of the autopilot is to reduce the workload, less fatigue pilots are always better, and that is very crucial in tight airspace, an error there can lead to fatal disasters.
I will quote myself from another thread : Automated flight should be a supplement to the pilots, not a substitute.

So NO, you are not cheating  Wink

IP Logged

Reply #2 - Aug 6th, 2004 at 11:16am

squilky   Offline
Colonel
I love YaBB 1G - SP1!

Posts: 15
*****

Thanks for the info Nexus. How is the auto pilot more difficult in a real aircraft? I've heard before what you mentioned about most aspects of the flight being preset to maximize fuel efficiency, reduce pilot fatigue etc. I've basically been flying the way you described. I take the plane down the runway and lift off "manually", then as I get into a good climb and approach my cruising altitude, I start dialing in my autopilot settings and activate it. Regarding the landings, do real commercial pilots landing a Boeing into Dulle airport use APP to capture the glideslipe and take the plane down, or is that hand flown?

IP Logged

Reply #3 - Aug 6th, 2004 at 12:02pm

Nexus   Offline
Colonel
The greater of two evils...

Gender: male
Posts: 3282
*****

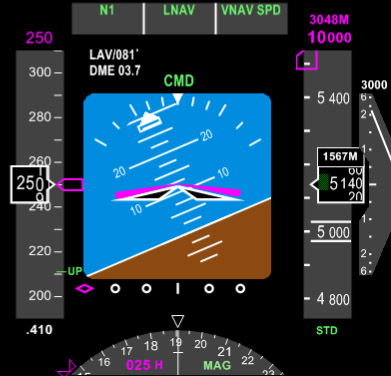

Okay, I'll give you every function of the 737NG autopilot. The Flight mode announciations are displayed on the PFD.

We start off with Autothrottle modes:

N1
GA
RETARD
FMC SPD
MCP SPD (Mach or KIAS)
THR HOLD
ARM (displayed in white color)

Next we have pitch modes:

TO/GA
ALT ACQ
ALT HOLD
VNAV PTH
VNAV SPD
VNAV ALT
MCP SPD (pitch mode in LVL CHG)
G/S
FLARE
V/S


Roll modes

HDG SEL
LNAV
VORLOC

A/P status:

CWS R
CWS P
CMD
FD


Here's a good picture of a real 737 MCP panel
http://www.airliners.net/open.file/597933/L

Granted all functions are not available during every stage of the flight of course, but still, you have some options to choose from here. And keep in mind that FS has left out half of the autopilot managing by leaving out the FMC. Many parameters are set in the flight management computer.

It's up to the pilot flying if he wants to do an autoland, but if weather is fine they usually land manually, but loc capture is often done in autoflight, then they simply disengage the autopilot and fly it manually from there.

IP Logged

Reply #4 - Aug 6th, 2004 at 4:46pm

jrpilot   Offline
Colonel

Gender: male
Posts: 2255
*****

The thing I don't understand about most boeing planes is how to use the autopilot...for example in any of the PSS Airbus's...(A319,A330,A340..and so on)...the autopilot is v. simple..I takeoff press managed mode set a hieght..and so forth...but anyways with most Boeings I don't understandwhen I take off do I immediatly press LNAV and VNAV or do I dod something else also I seen pilot putting in a speed for example after departure they put in 180...can't I just put it in managed mode...or is there no managed mode...if not how do i know what speed sto climb at or do I look in the FMC...also when climbing the pilots don't have ----- across the V/S..they have a  number like -1800...can someone describe how to use the Auropilot of the Boeings???

IP Logged

Reply #5 - Aug 6th, 2004 at 5:10pm

Nexus   Offline
Colonel
The greater of two evils...

Gender: male
Posts: 3282
*****

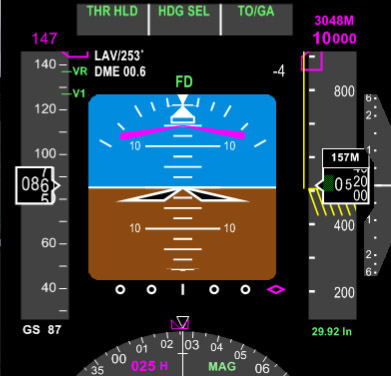

Boeing has it's own takeoff mode, called TO/GA.

Before doing any of this, make sure both engine generators are turned ON (A/T wont work unless), and OAT is entered in the FMC. FD switch should be ON and A/T armed.
...

You engage the takeoff mode during take off roll,  by pressing a button on the thrustlever (actually there is a button for each lever -both can engage TOGA).
When you do, Autothrottle goes to takeoff power (N1), set by FMC
After 60kts FD commands 15degree nose-up pitch
At 84kts THR HOLD is announciates as Autothrottle mode.
...
Roll mode is HDG SEL until 400ft RA, then you can choose other modes such as LNAV.15 degree nose-up is commanded until sufficient climb rate is established, then pitch is commanded to V2+20 (always set V2 as your MCP speed prior to lift-off)

...


THR HOLD is de-activated at 800ft, goes into armed mode (usually followed by N1). Now is the time to start the flap retraction schedule. I always engage VNAV in clean config, just a habit I have, speed is set at 250kts automaticly.
...

Climb speed is determined by the FMC, but it always commands 250kts below 10.000ft, after that it can vary. I've had everything from 284 to 315kts. It's a factor of weight and cost index, temperature yadda yadda, let's engage the autopilot  Cheesy
...

Airbus and Boeing has a different philosophy, but "managed" modes for the Boeings would be LNAV for lateral track, VNAV for BOTH vertical profile and SPEED during the cruise phase.. Since the FMC calculates your speed in the vertical profile, the autothrottle will go into FMC SPD when the aircraft reaches Top of climb, prior to that A/T will be in N1 mode and VNAV will read "VNAV SPD"  Smiley

Clearer?
Smiley

IP Logged

Reply #6 - Aug 6th, 2004 at 6:04pm

MattNW   Offline
Colonel
Indiana

Gender: male
Posts: 1762
*****

I think it would depend on the type of flying the pilot is doing. The guys who fly the big airliners use the AP a lot. Of course like Nexus said they don't rely on it, they use it. You have to remember however that this is a minority of pilots. Not a lot of pilots have those cushy airline jobs.  Grin Many are flying older airplanes without APs.

When I had my PPL (70s-80s) an AP was almost unheard of except on a commercial jet (the things cost tens or hundreds of thousands of dollars, almost as much as some airplanes). Nowadays however they are beginning to make it into some of the high end GA aircraft but never will you see a pilot replaced by one (at least I hope not).

Probably the way you are doing is correct. Manual take off and then let the AP handle the aircraft once clean and well established in a climb. As you approach you may want to let the AP take you right down the glide slope and take over the flair and landing at the last minute. The whole point however is that the pilot always stays in the loop and ready to take over the instant something doesn't seem right. There are certain circumstances you might want to vary this like certain weather conditions but mostly what you are doing seems about right.


In Memory of John Consterdine (FS Tipster)1962-2003
IP Logged

Reply #7 - Aug 6th, 2004 at 6:17pm
Bazza   Ex Member


A very interesting post =- thanks guys.........

IP Logged

Reply #8 - Aug 6th, 2004 at 6:37pm

Nexus   Offline
Colonel
The greater of two evils...

Gender: male
Posts: 3282
*****

Yeah, there are many ways to get from the ground to cruise level in an airliner. Just like everything in life, pilots have their own "preferable" ways of doing it, some handflies the bird right up to 10k, while other engages AP at 1k.

I tried to fly in CWS (which holds the bank and pitch angles for you, kinda like fly by wire) but it felt awkward for me. However it gets you from point A to B just as good as anything else.

To quote a famous singer  "I did it my waaaay"  Smiley

IP Logged
