Allright so yesterday my friend was asking me about FS ( he recently bought one, I got him into it, even though I told him to wait till FSCOF comes out, anyways) and he starts to tell me how a plane can land without flaps

I tell him that A cessna or any little one can do it, but its a big job since the airplane tends to bounce and lift up again unless you really reduce speed. Even so, when you try to flare, since flaps are not set it will just fly in a straight line or climb up again.

He asks me what flaps do

I tell him that flaps, as far as I know it, help reduce lift by changing the shape of the wing ( since its airfoil shape causes lift) and it lowers the stall speed, making it possible for the airplane to land softly.

Here is the thing:

He tells that since the flaps help you flare and it is also used by Boeings and even the Concorde to help takeoff that the flaps cause lift, not destroy it.

I tell him that the flaps just cause the nose of the airplane to go up and since a big speed is not neccesary it can takeoff. I gave him the example of LearJets taking off Meigs.

Now he says that  anyone can raise the nose of the airplane without flaps being neccesary. Now that I think of it is true. You can raise the nose of the Concorde, but it just won't take off. Boeings do takeoff, but after a while.

OK So I didn't know what to tell him. I did tell him he might be right and I might have the lift concept wrong.

So I thought to myself, where to else to go than to the experts here in SimV forums?

Hope you guys can help

Sorry for the lenghty post. Thanks!

Is this clear
the word is drag not what I spelled

More dgar?  Wow, how do I get more dgar?  I want more dgar!!

From Jeppesens "Aviation Fundamentals" book:
Using flaps
" When properly used, flaps increase the lifting efficiency of the wing and decrease stall speed. This allows you to fly at a reduced speed while maintaining sufficient control and lift for sustained flight. Remember, though, that when you retract the flaps, the stall speed increases.

  The ability to fly slowly is particularly important during the approach and landing phases. For example, an approach with full flaps permits you to fly slowly and at a fairly steep descent angle without gaining airspeed. This allows you to touchdown at a slower speed."

  This principle applies to take offs also, you can takeoff at a slower speed and shorter distance when you apply some flaps.

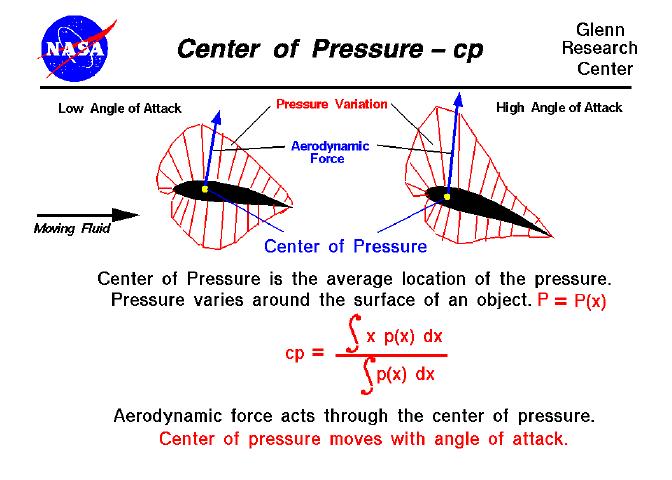

Actually, most of the "lift" a wing generates is due to the area of lower pressure on the TOP of the wing.

The Jeppesen description is excellent.

One important thing that hasn't been emphasized in this thread is that flaps have intermediate settings as well as full up and full down.  Some aircraft have a single intermediate position (like most Beech) while others have several and still others are infiniately variable.

Basically, the intermediate settings provide the increased lift desired at slower speeds as mentioned above.  Full flaps are applied to add drag to help slow down and for steep approaches. It varies with the particular aircraft.

Cal
CYXX

Quote:


Mornin' Ozzy...!
Am I correct in thinking that all my lovely little Cessna 150/152/172's, etc, all have "Fowler Flaps", where the flap is a hinged extension to the rear of the wing, (similar to the ailerons)?

Cheers mate... ...!
Paul.
(England).

Quote:


Mornin' Craig... ...!
That nose high flare is the one thing that stands out, and excites the on-lookers, using the whole of the underside of the wing as an air brake.
Amazing sight from day one...!!
I think the droop nose idea is just to allow the pilots a better view out of the cockpit when the plane is in a nose high flare...
...they can see where they're flippin' going...LOL...LOL...LOL..!

Cheers mate...have a good week-end!
Paul.
(Hereford).

Hi guys. The high angle of attack approach with Concorde (also the Vulcan) is a peculiarity of the delta wing planform. The delta wing is particularly stable at low airspeeds & impossible to stall. The ailerons on delta winged aircraft can often be drooped to use as flaps. These are named Flapperons.

Foz. Many light aircraft use the "Plain Flap" which works on a basic hinge. There is a variation called the "Slotted Flap" which involves an inset hinge point. The principle of a Fowler flap is different in that it slides back on a rail or track while extending, creating a gap or Slot between the wing & the leading edge of the flap. The Fowler flap has a streamlined aerofoil section to smooth out the airflow in the slot. Most modern airliners use a more complex multi-slotted Fowler flap like this example on the Boeing 727.



Generally, all types of flaps cause both increased lift & increased drag. Devices for increasing drag alone would not be flaps but airbrakes. As Calb mentioned, flaps usually have multiple positions used for different parts of the flight envelope. All you ever wanted to know about flaps here. http://www.rmcs.cranfield.ac.uk/aeroxtra/e348wingdespflap.htm
